Cat® 324

Operating Weight
22700 kg
Engine Power
112 kW / 152 hp
Bucket Capacity
SDA 1.30 m3 (1.70 yd3)
Description
  • Unmatched productivity at lowest cost per tonne
  • Biggest bucket in class - 1.3 cu.m Sever duty & 1.4 cu.m General Duty
  • Powerful and reliable Cat C7.1 mechanically controlled engine
  • Most efficient & reliable hydraulic system
  • 3 Mode Operation - Power, Smart & Eco
  • Robust structures for the toughest applications

STRONG AND RESPONSIVE

The proven Cat C7.1 engine delivers consistent power and fast load response, even under pressure or at high altitudes. Advanced electrohydraulics ensure precise control for grading, trenching, and lifting in demanding applications.

LESS DOWNTIME. MORE UPTIME.

Shared Cat components and extended service intervals make ownership simple and predictable. You’ll spend less time on maintenance and more time on the job, supported by Caterpillar’s unmatched global parts availability and dealer network.

BUILT TO LAST

Heavy-duty structures and components are designed to withstand challenging terrain and extend machine longevity. With matched bucket options for quarry or earthwork and proven system reliability, the machine is designed for long, productive shifts in rugged conditions.

HIGH PERFORMANCE POWER

The Cat 324 brings strength and efficiency together. Its turbocharged Cat C7.1 engine delivers high power density with proven fuel and air systems, while advanced electrohydraulics give you smooth, precise control in every pass.

EFFICIENCY THAT PAYS OFF

Eco mode cuts fuel use without sacrificing digging or lifting power, and automatic engine speed control reduces idle burn during lighter loads. With regeneration circuits and efficient pump design, the 324 helps you move more material while keeping fuel costs low.

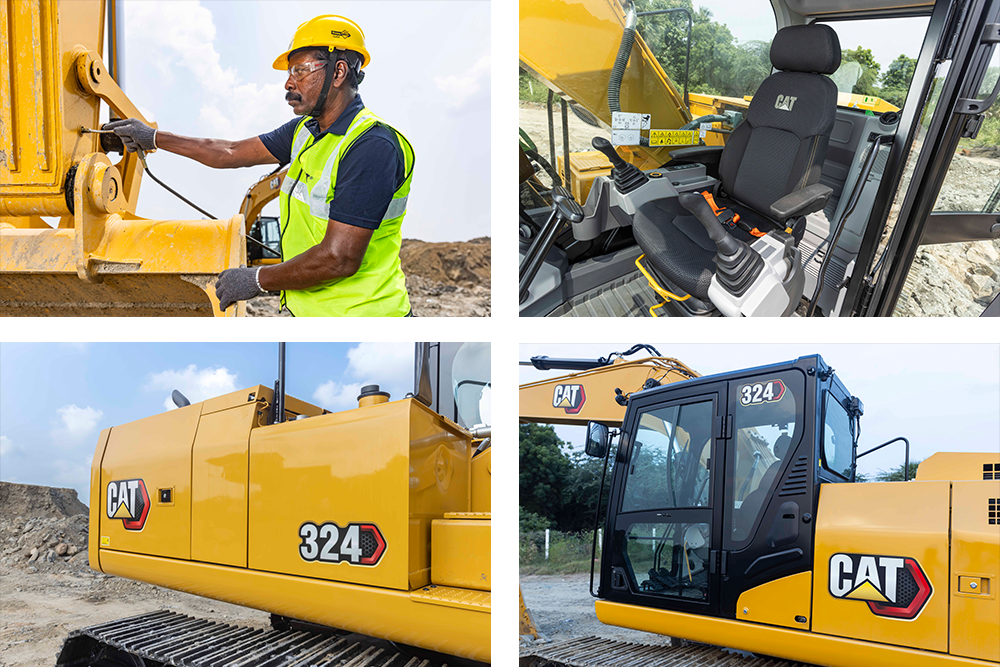

ENGINEERED FOR ENDURANCE

A rugged X-shaped carbody and heavy-duty base frame dissipate stress and add strength, while a long undercarriage improves stability. With cooling systems built for extreme heat and cold start capability down to -10º C (14º F), the 324 is ready to take on any environment – and keep producing.

BUILT FOR LONG-TERM PRODUCTION

From earthmoving to quarry work, the Cat 324 thrives in the world’s toughest conditions. Match your work with a choice of 1.3 m³ Severe-Duty bucket or 1.4 m³ General-Duty bucket. Reinforced structures, and a heavy-duty boom and stick ensure performance shift after shift.

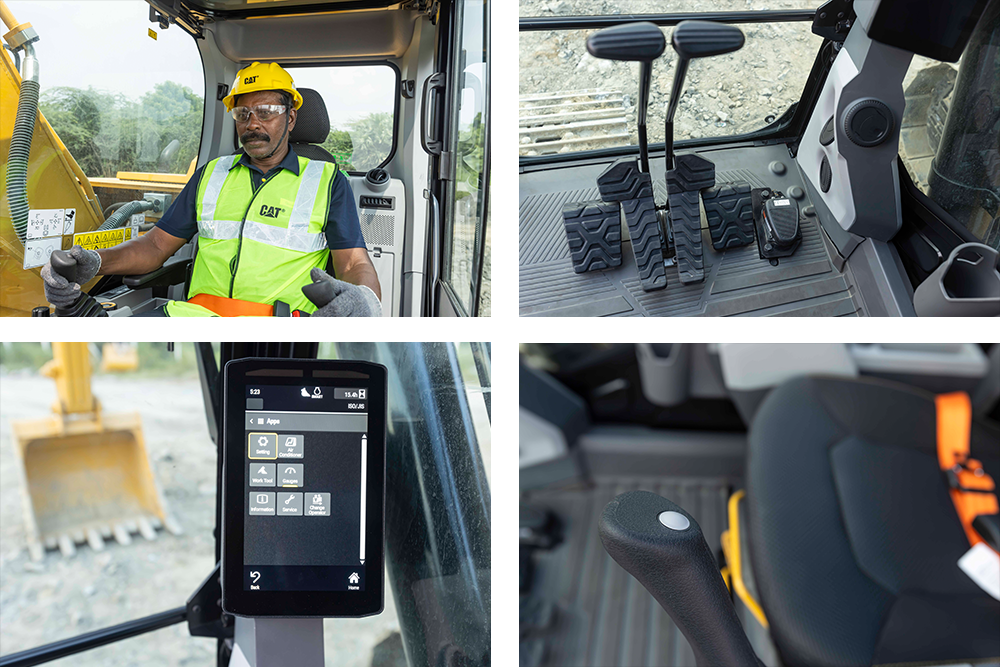

OPERATOR AWARENESS

The Cat 324 puts operator safety first. A cab with excellent visibility, standard mirrors, and optional camera keeps you aware of your surroundings.

ALL-AROUND PROTECTION

Optional guards, alarms, and reinforced structures add extra layers of protection. Paired with LED lighting for round-the-clock jobs, this machine is designed to help every operator go home safe at the end of the day.

PRODUCT SPECIFICATIONS FOR 324   Download


Net Power - ISO 9249 145 HP
Engine Model Cat C7.1
Engine Power - ISO 14396 150 HP
Bore 4 in
Stroke 5 in
Displacement 433 in³
Biodiesel Capability Up to B 20 (1)

Main System - Maximum Flow 416 l/min (106 gal/min)
Maximum Pressure - Equipment 5075 psi
Maximum Pressure - Travel 5075 psi
Maximum Pressure - Swing 3625 psi

Swing Speed 11.5 r/min
Maximum Swing Torque 45260 ft·lbf

Operating Weight 50100 lb

Fuel Tank Capacity 97.7 gal (US)
Cooling System 7.4 gal (US)
Engine Oil 4.8 gal (US)
Swing Drive - Each 1.6 gal (US)
Final Drive - Each 1.3 gal (US)
Hydraulic System - Including Tank 57.6 gal (US)
Hydraulic Tank 30.04 gal (US)

Boom Reach 5.7 m (18'8")
Stick Reach 2.5m (8'2")
Bucket SD 1.30 m³ (1.70 yd³)
Undercarriage Long 4.45 m (14'7")
Shipping Height - Top of Cab 11.0 ft
Handrail Height 9.9 ft
Machine Length (with boom, stick, bucket installed) 31.2 ft
Tail Swing Radius 9.3 ft
Counterweight Clearance (without shoe lug height) 3.3 ft
Ground Clearance (without shoe lug height) 1.4 ft
Track Length 14.6 ft
Length to Center of Rollers 11.9 ft
Track Gauge - Undercarriage 7.8 ft
Transport Width - 600 mm (24") shoes 9.8 ft

Maximum Digging Depth 20.7 ft
Boom Reach 5.7 m (18'8")
Stick Reach 2.5m (8'2")
Bucket SD 1.30 m³ (1.70 yd³)
Maximum Reach at Ground Level 31.1 ft
Maximum Cutting Height 30.6 ft
Maximum Loading Height 20.6 ft
Minimum Loading Height 8.5 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom 20.1 ft
Maximum Vertical Wall Digging Depth 18.4 ft
Bucket Digging Force - ISO 31250 lbf
Stick Digging Force - ISO 24500 lbf

ATTACHMENTS

Attachments tailor Cat machines to the specific requirements of a customer's working needs. Caterpillar Attachments enhance the productivity and utility of Caterpillar machines, equipping them for a wide range of tasks and operating requirements, and providing total system solutions for any job application.

Buckets
  • Large Cat 1.20 m³ (1.57 yd³) severe duty abrasive resistance bucket.
  • Cat® buckets are more than just an add-on, they are an extension of your Cat machines.
  • Each one is perfectly balanced to our excavators so you can take on heaping loads without compromising fuel efficiency or machine health.
  • We built them to fill faster, retain your load, and fit your task.
Pin Grabber Couplers
PIN GRABBER COUPLER (B-LINKAGE): 388-0067

Cat® Pin Grabber Couplers bring another level of productivity and versatility to your operation.
Add the ability to change attachments quickly and conveniently to your operation, while staying aligned to worldwide safety standards.

GC Hammers
H120 GC S

  • Cat® hydraulic hammers make short work of your demolition, construction, quarry and production breaking needs.
  • Cat Hammers are high performance breakers, designed to help you get the most from your Cat equipment.
  • Cat® Hammers make short work of your demolition, construction, and quarry needs.
  • Combine the simple, lightweight design of the GC S Hammer series with the reliability, durability, and value you expect from Cat products.
  • The result is a low cost per hour solution providing the consistent power and performance you need.

Rippers
1085MM (43IN) RIPPER

  • Constructed from high-strength steels and built to last, Cat rippers endure in the toughest conditions.
  • The box-section structure is reinforced for maximum rigidity, transmitting the full machine power to the material being ripped.
  • Rippers feature a replaceable wear tip, and most models also come equipped with a replaceable shank protector.

Clamshell Grapples
CTV15-1000 CLAMSHELL GRAPPLE

  • Cat® Clamshell Grapples help you get high production for transfer applications.
  • Move more material with fast opening and closing for short cycle times.
  • The heavy-duty construction and low maintenance of the tool keeps it working longer helping you to save time and money.

Multi-Processor with Concrete Cutter Jaws
MP318 CONCRETE CUTTER JAW

  • Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker.
  • Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform

Shears
S3025 ROTATING SCRAP & DEMOLITION SHEAR

Cat® Scrap and Demolition Shears are designed to make you money. An innovative, robust design and fast cycle times provide the production and reliability you need to be profitable. Cat shears are efficient and can handle everything from structural steel to mixed scrap. Cat shears are designed to get the job done.

Primary Pulverizers
P318 PRIMARY PULVERIZER

  • Cat P300 Series Primary Pulverizers are designed for applications such as cutting, breaking, and crushing concrete structures during demolition.
  • Mechanical pulverizers are cost-effective tools for recycling demolished concrete debris.
  • The bucket cylinder on the excavator powers the pulverizer, eliminating the need for a dedicated cylinder, associated hydraulics, and additional installation cost.

Vibratory Drum Compactors
CV117

  • Vibratory action and dynamic force provides excellent compaction in a compact size.
  • Used for compacting soil, sand or gravel prior to pouring concrete or laying asphalt surfaces. Also ideal for asphalt patch work.

Rotary Cutters
RC20

  • Cat® Rotary Cutters help to give you high production in hard material with controlled breaking.
  • Power goes directly to the drums along with mechanical seals to lock in grease and double support bearings offer high torque.
  • The rotary cutter is compatible with Cat hydromechanical work tool brackets in addition to being adaptable to trenching, tunneling and demolition applications.
